Friday 29 November 2013

Doing it quicker

In a recent article published in The Guardian, Andrew Gilligan wrote: "What, I've asked many cycle activists, what is it you want us to do that we're not doing already? The usual answer is "do it quicker". But we can't simply slap in panic changes that might make cyclists safer at the expense of other people's safety."

When cycle activists say, "Do it quicker", what does the "it" refer to, I wonder?

Plan, study and then introduce a cycle network? Ho, ho, ho, yes, very funny. I can just imagine them saying that!

Advanced Stop Lines

An anonymous commentator made the following point on Martin Porter's blog: "We don't need 'cycle superhighways', we need 'cycle superjunctions'. Cycling on a straight road is usually perfectly safe; junctions are where incidents occur. Most cycling infrastructure is undertaken where it is perfectly safe, and it tends to disappear where it is 'difficult'."

I am not going to take issue with him on his final point, but whilst it is true that most cyclist KSIs occur at or near junctions, nation-wide, just over a third of these incidents do not (source).

Even so, according to research published in November 2010 (Deaths of cyclists in London: trends from 1992 to 2006), there is a particular long-standing problem in London with HGVs. Despite accounting for just 4% of the traffic, freight vehicles were involved in over 40% (103 of 242) of all fatal incidents in the study period.

"Oh, look. The ASL box is the exact same shape as an HGV’s blind spot."

A recent comment on Mark Ames' blog caused me to raise an eyebrow: "Bike boxes are one of the most misleading thing designed on the roads, because they make you feel safe when you are not."

Bez from Beyond the Kerb—whose blog featured the pictures above—thinks they "act as bait for cyclists to ride up the feeder lane [...] often causing them to be alongside vehicles that are moving off (never a safe place to be) and often dumping them in the blind spot of an HGV."

However, this comment from Charlie Lloyd puts things in a completely different perspective:
"The interpretation of the photo with the yellow banded area around the cab is totally wrong. That banded area is the area that the driver of any large lorry first registered from 2006 MUST be able to see. Many older lorries have been brought up to this standard. Keltbray, the company owning the lorry in the picture, have these areas marked out in their lorry park. If the driver cannot see all the area before starting out then he/she must adjust the mirrors to make it visible.
"The discussion about ASLs and blind spots is incorrect. The dangerous blind spot that does remain is caused by high cabs with relatively small windows. This blind spot begins about 1.5 metres to the left of the cab and can continue for another 7-8 metres for the highest cabs. This area, well outside the marked area, is hazardous because large vehicles move to the right (left in Europe) before making a tight turn to near side.
"The very high level of mis-information on this matter is not helping cyclists, or the transport industry. It has not been helped by the over dramatic posters produced by TfL, based on a misunderstanding of the research into blindspots."

Photos: source

There are many, many criticisms of ASLs (e.g. here, here and here). These boil down as follows:
  • There are often other vehicles in the ASL;
  • The filter lanes can often be blocked; and
  • Most cyclists don’t understand where they should position themselves.
These criticisms are fair enough, and deserve to be taken extremely seriously. Indeed, Andreas from the London Cyclist blog emphatically talks about the importance of correct road positioning. However, these criticisms do not imply that ASLs are fundamentally flawed.

Sara Dorman, who writes the Dead Dog blog, speaks in praise of ASLs. She writes how riding through a junction without an ASL made her feel "uneasy". Conversely, at an almost identical intersection with an ASL, she found the riding experience "totally different".

"Not great," she says, but they do at least make things a "bit more comfortable". She continues: "So, while they may not turn all drivers into angels—and they certainly don't make cyclists invulnerable—I miss them when they're not there, which must mean they make a little difference at least."

"A simple idea that could save lives" (

In a non-vehicular cycling world—a world, indeed, as it ought to be—ASLs are entirely unnecessary. However, if the last thirty-five years is any guide, this world would still seem a long way off. As cycling advocates, we need to be able to deal with this.

The cycling community is now as united as it has ever been. Thanks in large part to a significant number of cycling advocates—most of whom I could name—we now have a destination which we can be proud of, and which we can all aim for.

To these people I say (quoting one of my favourite accountants): "If you have built castles in the air, your work need not be lost; that is where they should be. Now put the foundations under them."

Other short-term measures

In the short term, then, junctions could be adapted and made safer for cyclists by installing Advanced Stop Lines. Where necessary, cyclists can be given a separate green light, or else research from Denmark suggests that the 'bike box' should be at least five metres deep (so that lorry drivers have a direct view of any cyclists who may be waiting ahead of them).

Another measure—which is linked to a different aspect of good cycle provision—is to make alternative cycle routes more numerous, more comfortable, easier to follow, and more convenient (by removing annoyances for cyclists, for example).

Cycling: the way ahead says (p36): "According to his or her physical aptitudes, balance, agility, rapidity of reflexes and clarity of perception, the adult cyclist will instinctively choose his or her routes (major or secondary roads, cycle path or track, direct changes of direction or crossings on foot). Cyclists must therefore be enabled to circulate everywhere, on both secondary roads and major routes."

Network first

The map below shows a proposed network design. The bits in red, green and blue are currently non-functioning.

Please note that the main shopping streets—Oxford Street, Regent Street, even New Bond Street—have not been incorporated. I am very well aware, to quote Cycling: the way ahead, that "motorists are not better customers than cyclists." On the contrary. It's simply that, if you want to go shopping here, I feel that it would be generally better for everyone if you would park up your bicycle close by and take a stroll. This is not a hard-and-fast rule, incidentally.

Assuming this design was generally agreeable, how much money, and how much effort, would be needed to get the network up and running?

Full size map available here

You may recall that the National Cycling Strategy set a target for a 40% reduction in the overall cycling KSI by the year 2010 compared with the 1994-98 average.

There were 74 cycling deaths in London during the baseline period, at an average of 14.8. Since the beginning of 2011 to date—over the last three years in other words—there have been 44 cycling deaths, at an average of 14.67.

As the Mayor's Cycling Commissioner has said, this is not "carnage". I agree. He also points out: "We badly need better routes and safer roads." I agree with this, as well.

Note dated 2/12/13: Anyone interested in dancing on the head of a pin may first wish to consult this Full Fact report on cycling safety.

Note dated 7/12/13: Andrew Gilligan testified that 85% of incidents resulting in injury or death to cyclists in London happen at junctions.

Sunday 24 November 2013

Lessons from the Big Apple

I have recently started watching online chess commentaries on YouTube (Kasparov, Fischer, Carlsen, Tal, etc). There's a couple of American sites which I think are very good: OnlineChessLessons and thechesswebsite. Another one I like is by this Croatian chap called Mato Jelic. And then there's ChessWorld, which is presented by a guy who calls himself Kingscrusher (he's from Barnet).

With the Kingscrusher videos, when he gets to the critical position in the game, he usually gives you ten seconds to see if you can spot the key move. It is at this point that I usually mutter: "You could give me ten years, mate, I still wouldn't be able to see it!"

And yet, it's a funny thing about chess, because the same pieces that these Grand Masters are looking at are laid out in front of me. Why can't I see what they would do next? Why do I have to be told the answer?

In an incredibly inspiring presentation, Janette Sadik-Khan raises a similar point. She says: "Streets are some of the most valuable resource that a city has, and yet it is an asset that is largely hidden in plain view."

She continues: "The design of a street can tell you everything about what's expected on it. In this case [photo below], it's expected that you shelter 'in-place'. The design of the street is really to maximise the movement of cars, moving as quickly as possible from Point A to Point B, and it misses all the other ways that a street is used."

This street is designed to maximise the movement of cars.

Under the leadership of Mayor Bloomberg, it was acknowledged that with more and more people choosing to live in the built-up area, the design of our cities is going to be a key issue for our future. With the launch of PlaNYC in 2007, there was a recognition "that cities are in a global market place, and that if we're going to continue to grow and thrive, and to attract the million more people that are expected to move here, we need to focus on the quality of life and the efficiency of our infrastructure."

So the transport authorities in New York decided to work hard to refocus their agenda. Ultimately this was to result in them taking a new approach, and probably the best example of this can be seen at Times Square. Janette Sadik-Khan explains:
"People had tried for years to make changes: they'd changed signals, they'd changed lanes, everything they could do to make Times Square work better. It was dangerous, hard to cross the street, it was chaotic. And so, none of those approaches worked, so we took a different approach—a bigger approach—looked at our street differently.
"And so we did a six-month pilot. We closed Broadway, from 42nd Street to 47th Street, and created two-and-a-half acres of new pedestrian space. And the temporary materials are an important part of the programme, because we were able to show how it worked. And I work for a data-driven mayor, as you probably know, so it was all about the data. So if it worked better for traffic, if it was better for mobility, if it was safer, better for business, we would keep it; and if it didn't work, no harm, no foul, we could put it back the way it was, because these were temporary materials, and that was a very big part of the buy-in: much less anxiety when you think that something can be put back."

Imagining ourselves forward

In the chess videos I watch, it is usually the case that the breakthrough moment involves a sacrifice of some kind. Indeed, in some of the "immortal" games, it is often the queen which gets "sacked".

Always, always, of course, and at all costs, the king must be protected against the opponent's forces. In New York, it would rather appear that there is a new king on the throne: the New Yorkers themselves, the people, and the places they most wish to visit.

David Edmonds, Bobby Fischer's biographer, has said: "What chess is really about is a form of wisdom: it's about intuition; it's about imagining yourself forward."

In this sense, the use of temporary materials and paint is the equivalent of moving a piece, and then leaving a lingering finger on it. For those of us who do not have the ability to imagine ourselves forward—and most of us don't—we need to be able to see the piece in its new position before fully committing ourselves to the move.

Moving quickly

Even so, the evidence from New York is that it is still possible to move very, very quickly. "Instead of waiting through years of planning studies and computer models to get something done," says Janette Sadik-Khan, "we've done it with paint and temporary materials. And the proof is not in the computer model, it is in the real-world performance of the street."

She continues: "I can't underscore enough how much more quickly this enables you to move over traditional construction methods."

And then: "We also brought this quick-acting approach to our cycling programme, and in six years, turned cycling into a real transportation option in New York. I think it's fair to say ... [audience applause] ... it used to be a very scary place to ride a bike, and now New York has become one of the cycling capitals in the United States.

"And we moved quickly to create an inter-connected network of lanes ..."

And we can, too. We need to be mindful of what has gone before, of course. The following is adapted from Paul Gasson's 1999 report on the Camden Cycle Route Network:
The original 'theoretical' LCN featured a set of direct routes linking local centres and longer-distance destinations. However, following a series of ad hoc modifications and additions, the strategic nature of the network became somewhat blurred. The transition from concept to physical network was more than a little compromised, therefore.
In 1994 the network still remained essentially a paper concept, as barely a single cycle facility had been built in the borough for a decade. Fed up with this lack of activity, Camden Cycling Campaign suggested a number of modifications to the LCN, but these were rejected in early 1996.
However, thanks to an officer's hard work, many of the suggested routes were later to form the beginnings of a new Local Camden Cycle Network. Since then a considerable number of cycle facilities have been installed (such as Advanced Stop Lines). A couple of complete LCN routes have even been 'implemented', the most notable of which is the east-west route running to the south of Euston Road.
Whilst this is assuredly one of the better LCN routes in London, and of some benefit to existing cyclists, road space pressures meant that parking and poor driving standards degraded the effectiveness of this route. Thus, under the guidance of Campaign member Paul Gannon, the physically segregated Seven Stations Link between Paddington and Liverpool Street was proposed.
So whilst being denser than most of the other borough cycle networks, Camden's is very far from being complete, in the sense that it still has a large number of hanging links (for example, on one-way streets where there are no contraflow facilities).
Mill Lane, West Hampstead
A further problem exists which is intrinsically down to route quality. In common with most boroughs, Camden Council maintains that an LCN route is implemented only once it has been through the design / consult / build phases. This blind adherence to procedural bureaucracy, instead of common sense, led to an outcry from the Campaign during 1997-98, when the 1.5 km West Hampstead LCN route along Mill Lane was implemented at a total cost of £40 000. The facilities which actually appeared on the ground comprised 10 metres of advisory cycle lane and a 3 metre section of mandatory lane in the centre of the road (to help cyclists negotiate a junction). 95% of the cost was accounted for by the consultation process.
Route quality remains variable. There are routes such as Mill Lane—"where facilities are minimal, ineffective, and do not address the most basic of hazards that cyclists face"—but there are also some better quality routes, such as the popular north-south route through Somers Town, "which runs along relatively quiet streets, and has some dedicated cycle facilities."

And now I quote directly: "So whilst implementation quality in the borough is improving, most still falls well below what even the averagely competent cyclist would consider to be reasonably safe, let alone someone new to cycling. As the council has a target of doubling cycle use by 2002, the public's perception of the network's attractiveness and safety must be a key consideration when setting adequate design standards."

That was written nearly fifteen years ago. During this period, a cyclist has been killed in London once every twenty-four days, or something like that.

Network first

Steffen Rasmussen was invited to London last year to address a GLA committee hearing. The very first thing he said—the very, very first thing—was this: "The key word is an holistic approach and then a separation of functions."

I would like to consider how this approach might be pursued in Westminster. We know that the Mayor already intends that some exemplar schemes be installed at various locations around London. I won't be spending any time looking at these here and now, but I will just take a couple of moments to consider some of the non-functioning sections of a proposed bicycle network (shown in bold red on the map below).

View Westminster in a larger map

One day, perhaps, I imagine that the whole of the south-east corner of Sloane Square would be closed to private motor traffic. What do you think?

In the case of Belgrave Square, the reason a two-way cycle facility is required along the southern side of the square is because it needs to link up with Hyde Park Corner in some way (please refer to the end of this blog for more detail).

The Belgrave Road route is currently the subject of a public consultation, and except to repeat a point that I have made before—that it doesn't join up to anything—I don't wish to say anything else.

In order for cyclists to be able to pass through the Victoria gyratory system more conveniently, two-way cycle facilities are required both on Buckingham Palace Road and on Ebury Street - Beeston Place.

Finally this leaves a proposed cycle route along Gloucester Street.

Gloucester Street at the junction with Sutherland Street

Gloucester Street at the junction with St. George's Drive

Gloucester Street at the junction with Belgrave Road

I was intrigued by "Option 4" (as reported by the Warwick Square residents). One of the points made in favour of this option was the possibility of direct access to Victoria Station from Nine Elms. The report says: "Network Rail could provide a dedicated walkway / cycle path as part of their future redevelopment plans for the station’s railway sidings."

A major problem with this—possibly—is detailed at Section 1.4.2 of Cycle Infrastructure Design (LTN 2/08), thus: "It is important to avoid creating long, narrow routes that are not overlooked by adjacent properties, as these can give rise to anti-­social behaviour." LTN 2/08 makes the point that the risk of crime can be reduced through the removal of hiding places along the route, and through the provision of security lighting, but I think it is generally regarded that the presence of passive surveillance from neighbouring premises or other users makes for the best option.
It is true that Option 4 provides for more direct access to Victoria Station from Nine Elms, but not by very much. It's only about 300 feet further than the alternative back street route shown in blue. My maths isn't great, but I think that if you travelled at an average speed of 12mph, this would equate to about 17 seconds.

My concern is obviously that TfL are proposing all sorts of wonderful schemes without establishing how they would fit in with the bigger picture. I also worry that by focusing on these grand projects, they are not giving any consideration to less glamorous but immediately available schemes.

The proposed Grosvenor Bridge cycle path I can see, but I do not believe that a sufficiently robust case has yet been made for Option 1. The unanimous view of Warwick Square residents was that TfL appeared only to be "considering this project from the viewpoint of those connected to the new development on the south side of the river." Just so. From Clapham Common up to Parliament Square, say, the Option 1 bridge does not confer any advantage when compared to the currently-available facilities (in terms of distance). Likewise for Camberwell Green up to Hyde Park Corner (via Belgrave Road).

If you live in Brixton, say, and want to get to Victoria, then Option 1 would be very good for you (assuming rumours of a "cycle bridge" with four flights of steps at each end prove to be ill-founded). I don't know. I am not saying don't do it, but I would want to see how this fits in with everything else. Specifically, my concern is that if we gain this on the swings, are we going to end up losing something else on the roundabouts?

Residents' parking

Paul Gasson reports that, following the 1997-98 consultation on Mill Lane, "the council supported the right of residents and businesses to continue parking along the road over and above the provision of cycle lanes. However the council did acknowledge that this outcome was not acceptable, and that something had to be done for future schemes."

Wisely (in my opinion), the consultation regarding the re-routed CS5 scheme steered clear of any debate about residents' parking. This didn't go down well with one commentator, however: "The new route is absolutely not going to be safe for a child or pensioner to cycle on. If you’re not going to design infrastructure that is worth building, then simply be honest and say, 'We can’t be bothered providing a safe route.'"

As Cycling: the way ahead for towns and cities notes: "Taking a political decision to reduce the space allotted to cars (whether for traffic or for parking) in order to create facilities for cyclists requires a certain amount of skill, entails explanations for the population, and has to be implemented gradually."

Once the network is up and running, it then becomes very much easier to decide how best to take it further forward.

Closing remarks

"And we moved quickly to create an inter-connected network of lanes ..." So said Janette Sadik-Khan, and all the evidence is that this approach is the most effective way forward. So why aren't we doing it that way?

About eighteen months ago, Ben Irvine wrote: "The Olympic authorities have shown that it is possible, and indeed desirable, to create a network of designated routes throughout London. They have shown how easy it is to put up signs and to paint new lanes and markings on the road surface, to make the network functional and visible, all within a very short space of time."

It's not as if "it can't be done", therefore. So let's give it a go, why don't we? What's to lose? If it doesn't work out, then no harm, no foul, we'll just put things back to how they used to be.

Tuesday 12 November 2013

Making easy things difficult

On page 57 of Cycling: the way ahead, in the chapter which explains everything you need to know about how to start developing an amenable cycling environment, is a table entitled 'Guide to general and specific measures for cycling'.

In the main body of the text, it is written: "All of the installation measures which call for little planning may be applied without major risk of error or loss. Most of the measures listed in boxes 1, 2 and 3 are inexpensive, simple to implement, easy to study and not strictly tied to the concept of a cycling network."

You can decide for yourself whether or not the measures suggested are indeed inexpensive, simple to implement, and so on, by following this link. For the moment, however, I am more interested in box 4, which lists the works aimed specifically at cyclists.

The little picture of the bicycle going uphill indicates schemes which would require planning, and which would be difficult to implement or correct. As you can see, the column beneath is completely empty.
The picture of the bicycle travelling on level ground indicates schemes which would be independent of planning, and which would be easy to implement. It is interesting to note that the introduction of short cuts and the modification of hazardous crossroads (accidents) are both listed here.

The bicycle going downhill is saying that, according to the situation, planning is necessary or not, and implementation is difficult or easy. Clearly, then, these works would be as simple or as difficult as we want to make them. If we take the attitude that they are going to be easy to sort out, then they will be easy to sort out; and if we take the view that they are going to be hard to sort out, then they will be hard to sort out.

Well, I don't know about you, but I always find it inspiring to realise that we can improve our situation simply by changing our attitude. This said, as Warren Buffett has noted: "There seems to be some perverse human characteristic that likes to make easy things difficult." So we will have to see which way this ends up going.

You can see that the installation of a contraflow cycle lane on one-way streets, even on minor A roads, is one of those instances which is either difficult or easy to sort out. In the case of Belgrave Road, local residents have responded favourably to the proposal put to them, so it seems likely that the new scheme would be allowed to proceed without too many problems.

Another one of those easy-to-do / difficult-to-do things is the "introduction of a network of cycle routes". This job would be made easy, I suggest, if we allowed that all of the network be introduced to the same level of functioning as, say, the Belgrave Road route. Conversely, this job would be made difficult if we insisted that all of the network be introduced to the same level of functioning as, say, the CS2 Extension.

The map above shows in blue all the bits of a proposed strategic cycle network which are currently non-functioning (not including Vauxhall Cross).

Building on the positives

I have previously spoken about the need to build on the positives of cycling, and not simply to focus on the removal of negatives.

The major cycling-related benefits are classified into the following categories:
  • transport efficiency;
  • cyclists’ health and fitness;
  • economic and social impact;
  • environmental protection.

"Transport efficiency" relates to the fact that, in the built-up area, the bicycle is generally quicker and more convenient than most other forms of transport. Thus it is written in LTN 2/08:
Pedestrians and cyclists need direct access to commercial, retail, education and employment areas. Non-­motorised users are particularly affected by indirect routes because of the additional physical effort required and the sometimes considerable increase in journey time. Having an advantage over private car users in terms of distance and / or journey time will also help to encourage cycle use for short trips.
The network of routes for non-­motorised users needs to be planned at a finer scale than the highway network.

How fine is a question of taste. In order to meet what it calls "the freedom of route choice requirement", CROW recommends a "mesh width" of 250 metres. (The mesh width is defined as the distance between parallel amenities.) For most practical purposes, however, Dutch cities strive to provide a mesh width of 500 metres for through-routes.

So anyway, I was looking at the proposed network map above, and it occurred to me that some of the gaps looked pretty big.

Full-size view available here

Now, as it happens, I am able to fill some of these gaps using compass colours. The green-coloured routes have caught my eye, though as things stand, they have not yet been incorporated into my proposed design. Just to be clear, however, this is a strategic network I am proposing, so it is not necessarily the case that every single route which is useful to cyclists needs to be included as part of the primary network.

Let us recall that the purpose of "introducing" the network to a minimum level of functioning is threefold:
(i) to establish the network, ensuring that more highly-engineered solutions can be developed within the framework provided by a functioning cycle network;
(ii) to help to reduce potential conflict, firstly by raising the awareness of drivers, and secondly by enabling cyclists to ride in the correct position relative to other traffic; and finally,
(iii) to enable people to optimise their journey by making both route-planning and wayfinding easier.
Importantly—really importantly, I think—a network introduced to a minimum level of functioning would not make cycling conditions any worse than they already are. In fact, it would make them slightly better.

Reducing potential conflict

In September 2012, in my blog Daring to redistribute space and means, I wrote: "It is acknowledged that many factors contribute to a bicycle-friendly environment. It is vital, for instance, that cyclists are visible to motorists at junctions."

Mile End Road near the junction with Bancroft Road

More recently, in my blog Blind-spot crashes, I wrote (interpreting SWOV):
In the short term, dangerous junctions could be adapted. This can be done by installing advanced stop lines. Where necessary, cyclists can be given a separate green light, or else research from Denmark suggests that the 'bike box' should be at least five metres deep (so that lorry drivers have a direct view of any cyclists who may be waiting ahead of them).

Now, looking at the photo above, this doesn't strike me as a particularly dangerous junction, and yet it was the scene of a cycling fatality recently. The need to get busy as quickly as possible cannot be stated strongly enough, therefore.

Mary Hassell, the coroner at the inquest of Brian Dorling and Philippine de Gerin-Ricard writes: "In my opinion action should be taken to prevent future deaths and I believe that [the Mayor] and Transport for London have the power to take such action."

Indeed. But given that these incidents can happen anywhere and everywhere, what action should be taken?

By way of an answer, let us take a moment to consider the Cycle Superhighways. There are two big problems with the Cycle Superhighways. The first is that in some circumstances, cyclists are placed in the incorrect position relative to the other motor traffic. This point has been made recently by Mary Hassell and Martin Porter, The Cycling Lawyer. Martin pointed out that the current design, typified by a 1.5 metre-strip of blue paint, has no legal significance, and in some situations, "encourages cyclists to ride in an unsafe position too far over to the left."

The other big problem is that the routes do not join up to anything. This is from Cycling: the way ahead for towns and cities: "The existence of a network plan increases the effectiveness of each intervention made in favour of cycling."

Vauxhall Bridge Road (left) and Belgrave Road (right)

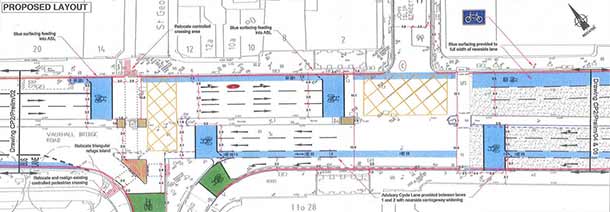

Anyway, TfL have recently decided to re-route the course of CS5 (details here). I'll come back to this later on, but for the moment, I just want consider what TfL have got planned for the new route.
Because Belgrave Road is fairly quiet, we wouldn’t need to make any changes to the road, apart from intermittent markings—square symbols every so often on the road surface to reassure cyclists that they were on the right route. There wouldn’t be any continuous lines of blue paint. There wouldn’t be any physical change to the vast majority of the road. There wouldn’t be any changes to the bus stops. And there wouldn’t be any loss of parking.
The only thing we would need to do would be to install a contraflow southbound cycle lane at the very top end of Belgrave Road [...] and also to do something similar across Eccleston Bridge and into Belgravia.
The only thing? We have already seen how important it is for cyclists to be visible at junctions. This notwithstanding, I think that—I think that Britain is essentially a vehicular cycling country. Like many cycle advocates, I would like to see this change much more towards the Dutch model. However, there is not yet one town or city here that has got even the basics in place. Given where we are now, and how far we need to go, I am attracted to this idea of repeat markers laid on the road surface. I'll come back to this later on.

An extract from Cycling: the way ahead for towns and cities, the only
publication out of Europe to answer the question, How to start?

All sorts of reasons have been put forward to explain the route change to CS5, but to my mind, the most persuasive has been suggested by Ken Sparkes of Warwick Square: "Looks like TfL planners pushed CS5 up Vauxhall Bridge Road and then freaked out at Victoria Station."

Ken continues: "Nobody has really figured out how to get cyclists safely from Vauxhall Bridge, past Victoria Station and on to Hyde Park and Marble Arch to join the superhighways coming down from the north."

Even so, according to the criteria listed here, the course of the originally-proposed route is the most desirable. Prudence demands that this route would be "introduced" to a minimum level of functioning, and then developed further on the basis of priority interventions and a timetable. In this country, however, there is a good deal of resistance to this idea.
I can’t guarantee it as a responsible civil servant. I can't pass it on to the public because I can't guarantee the standard of the quality of the route. If people do their own thing, that’s fine; but if a route is introduced to a minimum level of functioning, people can quite rightly say: "Well actually, I tried to go along your route, and it was a nightmare, and I had an accident." And like: "I’ve lost my daughter now. What do you say about that?" You’re completely liable and responsible for it, so I can’t.
The Manual for Streets acknowledges the reluctance of some authorities to implement schemes that do not meet all of the safety criteria, for fear of litigation. Obviously this has had—is still having—a paralysing effect.
Nobody made a greater mistake than he who did nothing because he could do only a little. - Edmund Burke
To avoid situations in which you might make mistakes may be the biggest mistake of all. - Peter McWilliams
It isn't making mistakes that's critical; it's correcting them, and getting on with the principal task. - Donald Rumsfeld
The only real mistake is the one from which we learn nothing. - John Powell
If you have made mistakes, there is always another chance for you. You may have a fresh start any moment you choose, for this thing we call 'failure' is not the falling down, but the staying down. - Mary Pickford
If you're not making mistakes, then you're not doing anything. I'm positive that a doer makes mistakes. - John Wooden
The man who never makes a mistake is the man who never does anything. - Theodore Roosevelt
I get the sense that for many cycle advocates, things have also become very black-and-white: either do it properly, or don't bother. The upshot is that people are now finding themselves having to deal with a false dichotomy, when in fact there is at least one additional option to be considered.
Dans ses écrits, un sage Italien / Dit que le mieux est l'ennemi du bien. - Voltaire
In philosophy, the desirable middle between two extremes—the one of excess and the other of deficiency—is referred to as 'the Golden Mean'. Socrates, for instance, teaches that a man "must know how to choose the mean and avoid the extremes on either side, as far as possible". See also The Doctrine of the Mean (Confucianism) and The Middle Way (Buddhism).

To begin with, Lynn Sloman suggests, the focus of our attention should switch from a few grandiose schemes to thousands of small initiatives. "Even if their impact is not massive," Cycling: the way ahead explains, "it will be real."

CS5 route change

It has obviously proved necessary to compromise on the delivery of certain aspects of this route.

Andrew Gilligan writes that about 1600 cyclists a day use Vauxhall Bridge Road. He also predicts: "that a substantial proportion, but not all, of the cyclists currently using Vauxhall Bridge Road will switch to the new route." But why would they?

The main reason that most regular cyclists would use Belgrave Road from Vauxhall Bridge would be to get to Hyde Park Corner (as per the dashed red line in the map above). This they can currently do. In future, they would be enabled to make the return journey, but having said this, what cyclists would have to do in order to be able to access Belgrave Road southbound (from Hyde Park Corner) seems more than a little hairy.

Looking at this strategically, another key destination from Vauxhall Bridge would be St James's Piccadilly. It is at this point that I need to hold my hands up and say, I didn't see this green-coloured route until just now. But in terms of journey distance, it is a good one: 0.46 mile shorter than the red-coloured route, and 0.12 mile shorter than the combination of routes I had planned.

Warwick Square residents were told that CS5 "needs some way to get from Vauxhall Bridge up to Hyde Park. The original Vauxhall Bridge Road plan is a bit complicated, so TfL want to shift it onto Belgrave Road via Bessborough Street."

Okay, but it looks like the route is going to end somewhere in Victoria, probably at the junction with Ebury Street. So as things stand, cyclists wishing to carry on to Hyde Park and Marble Arch may end up having to "do their own thing". This is because the alternative route—LCN 5 via Lowndes Square and Albert Gate—would add over half-a-mile to the most direct route, and over a third of a mile to the second-most direct route, and it is unlikely that [m]any cyclists would be prepared to go this far out of their way.

Andrew Gilligan writes that "above all", the new cycle route "allows cyclists to reach a much wider area north of Victoria—and much of Victoria itself, via Buckingham Palace Road or the Ebury Street cycle track—without passing through the gyratory system at all."

This is very misleading. The "much wider area north of Victoria" is in fact already accessible via Ecclestone Bridge northbound, and Elizabeth Bridge southbound, and is almost entirely residential (Belgravia). Furthermore, the link to Buckingham Palace Road and Ebury Street is not worth nearly as much as Andrew Gilligan implies, and not just because of all the one-ways.

Andrew Gilligan has written that CS5 "was planned to come from New Cross and Peckham, over Vauxhall Bridge and up Vauxhall Bridge Road, ending at Victoria." He continued: "Nobody liked that idea much, frankly."

But what didn't they like about it? The fact that the route ended at Victoria, not really joining up to anything? Or that the proposed programme of works were, in the words of Warwick Square residents, "a bit complicated"?

Is it safe?

The rationale behind the route change seems fairly clear-cut, namely, that for all but the small group of people who have the equivalent of Bikeability Level 3.5 training, the junction around Victoria is too dangerous. And so, there was this idea to reconfigure the layout of the road hereabouts in order to make conditions for cycling safer.

Annual Average Daily Flow (AADF) figures for Mile End Road / Bow Road -
the 2005 spike in cycling came about as a result of the 7/7 bombings.

There has been a marked rise in the number of serious and fatal injuries on Mile End Road / Bow Road over the past few years, and the connection between this and the development of CS2 cannot simply be brushed aside. Indeed, if the evidence of "the CS2 experiment" serves as any guide, there would appear to be a very real prospect that any road "improvements" to Vauxhall Bridge Road along the lines originally planned would have the opposite effect to that which was intended.

Therefore, by replicating the road conditions of CS2 on Vauxhall Bridge Road—no, let's be honest: the road conditions would probably have ended up being worse than CS2—for instance, the original design required cyclists to ride between two lanes of moving traffic for a distance of five hundred feet or more—this was likely to be a PR disaster in the making.

Thus CS5 was given a route change and—Hey presto! problem solved.
Technological Method of Problem Solving.
Copyright © 1993 Adapted from Hacker & Barden, Living with Technology.

Except of course that the problem has not really been solved, it's just been side-stepped.

Describe the problem

The CS2 route change has thrown up a significant issue which really does need to be dealt with head-on, and that is, to identify the best short-term solution for treating roads like Vauxhall Bridge Road.

Martin Porter writes: "Personally I do not buy the argument that putting down paint is a useful indication to motor traffic that cyclists may be present. Any driver, especially in London but also elsewhere, is criminally negligent if he does not consider the likely presence of cyclists on any highway. Are we implying that where there is no blue paint drivers are not obliged to consider the likely presence of cyclists?"

I have left a comment on Martin's blog, because he raises some important issues, and I think it would be a great help if he would clarify his thoughts in this area. But however much you are persuaded by the basic thrust of his argument, it does rather seem that there is a disconnection between his premise and his conclusion. I am not saying Martin is wrong, necessarily, just that his main point does not logically follow on from his first point.

Photo credit: The Cycling Dutchman (left) and As easy as riding (right)

On busy roads, high-engineered solutions are, I believe, the most appropriate way to provide for cyclists of all abilities. The reality is, however, that these solutions cannot simply and quickly be installed (except, perhaps, here and there). Therefore, it is good practice to "compare possible solutions against constraints and criteria".

I am not going to consider all the various options here, not least because this is already proving to be quite a long blog. My preference in the short-term is for repeat markers laid on the road surface. As necessary the map can be marked to show dangerous connections, and then let people decide for themselves which route would suit them best.

What I mean by a 'dangerous connection' is that a section of the network is regarded as so brimful of potential conflict, let's say—so perilous—that it could only be used safely by someone who has Bikeability Level 3.5 training. Such a 'difficult' section as this could be shown on the map with a dashed line.

People trained to Bikeability Level 3 should, I suggest, be able to use all the rest of the network without let or hindrance.

Mark Ames has recently written: "If infrastructure is going to be built that more vulnerable cyclists are to be expected to ride on then it must be done properly." Yep. But city-wide, this infrastructure might take eight years to develop, or eighteen years, or even eighty years, and there has to be some thought given as to what should be done in the meantime.

The thing about repeat markers laid on the road surface, as before said, is that for one thing, they wouldn't make cycling conditions any worse, and that for another thing, they would help to reduce potential conflict, firstly by raising the awareness of drivers, and secondly by enabling cyclists to ride in the correct position relative to other traffic.

Martin's point, that motorists should behave courteously to cyclists at all times, on or off the cycle network, is well made. All I can say by way of a reply is that my proposed cycle network does more than the bus network does. Yes, okay, it doesn't do everything. Fair enough. But I think that is just one of those things. Besides, any gaps in the strategic network could be filled with—local 'solutions'.

Think of solutions

Another way of dealing with a road like Vauxhall Bridge Road—as a cyclist, I mean—is simply to avoid it. This is what I was talking about when I said, give people the information and then let them decide which route they want to take. The worse thing about the new CS5 route, then, is not that it avoids the junction near Victoria station, but that it comes to an end without joining up to anything meaningful.

Cycling: the way ahead makes the point that only by studying a cycle route network does it become possible "to truly grasp the situation, to draw up a list of black spots and to act in a targeted and highly efficient fashion."

In terms of a 'network first' approach, it is helpful to embrace what might be called 'whole systems thinking'. An important feature of this process, particularly in the very early years, is to make the minimum change for the maximum effect. (If you don't like this, or don't agree, please say why.)

A cyclist "doing his own thing" at Hyde Park Corner.

The point I am working towards is that there is simply no getting away from the fact that Hyde Park Corner needs to be reconfigured in some way. Even so, the dictum 'minimum change maximum effect' could still hold true. It's just that in this instance the minimum change would actually amount to a highly-engineered solution.

I have spent quite a lot of time at Hyde Park Corner, and I have seen that there are three sets of traffic lights at various points around the junction. My thought was to try to make the best use of these. The 'minimum change', therefore, would be to keep the number of traffic lights the same as they already are.

Of course, it is going to prove necessary to reallocate some of the carriageway space in favour of the cyclist. The question is: Can this be done in such a way as not to unduly affect the smooth flow of traffic?

Duke of Wellington Place looking north
Duke of Wellington Place looking west

Approximately one lane on the driver's off-side (i.e., adjacent to the traffic island) would need to be reallocated to the bicycle.

Grosvenor Place near the junction with Chapel Street

There is simply no need to accommodate this right-turn here. Motor traffic can in fact more easily access Belgrave Square via Grosvenor Crescent, so you have to wonder what all these car- and van-drivers are actually thinking.

My proposal here would be to remove the bus lane, to have two lanes of motor traffic southbound, no right-turns allowed, and two lanes of motor traffic northbound, three at the junction with Duke of Wellington Place (see the photo with the Kuehne + Nagel truck above).

The cycleway can run either down the middle of the road or on the western side of the road.

(Note dated 21/11/2013: The thing about running the cycleway down the western side of the road is that, unless you pause the traffic in between light changes, cyclists would have a guaranteed red at this junction. The other thing to consider is how cyclists would be expected to proceed if they wanted to carry on southbound down Grosvenor Place towards Victoria station. The thing about running the cycleway down the middle of the road, as far as Chapel Street, say, is that it would be necessary to install a contraflow cycle facility on the southern side of Belgrave Square.)


The six constant factors of a thoroughly-understood cycling policy are:
i. network
ii. parking
iii. information
iv. education
v. training
vi. promotion

There is not one town or city authority in this country that could contemplate that list with a sense of quiet satisfaction. So there we go.

And which of these factors is difficult to provide? If we take the view that the "introduction" of a cycle network is actually quite simple, then surely there is nothing on this list which an authority committed to making a long-term investment in active travel would regard as challenging.

Can it be true, therefore, that it is a fear of making mistakes that is holding us back?
